Our aluminum composite panels, also called aluminium composite panels or ACP sheets, cover architectural cladding, decorative interiors and sign-board applications. Compare the core, coating, skin thickness and finish for your project.
One factory, full-line ACP production. Standard widths from 1220mm to 2000mm, total thickness 2–6mm, unlimited custom colors.
Exterior-grade panels for building facades and curtain walls.

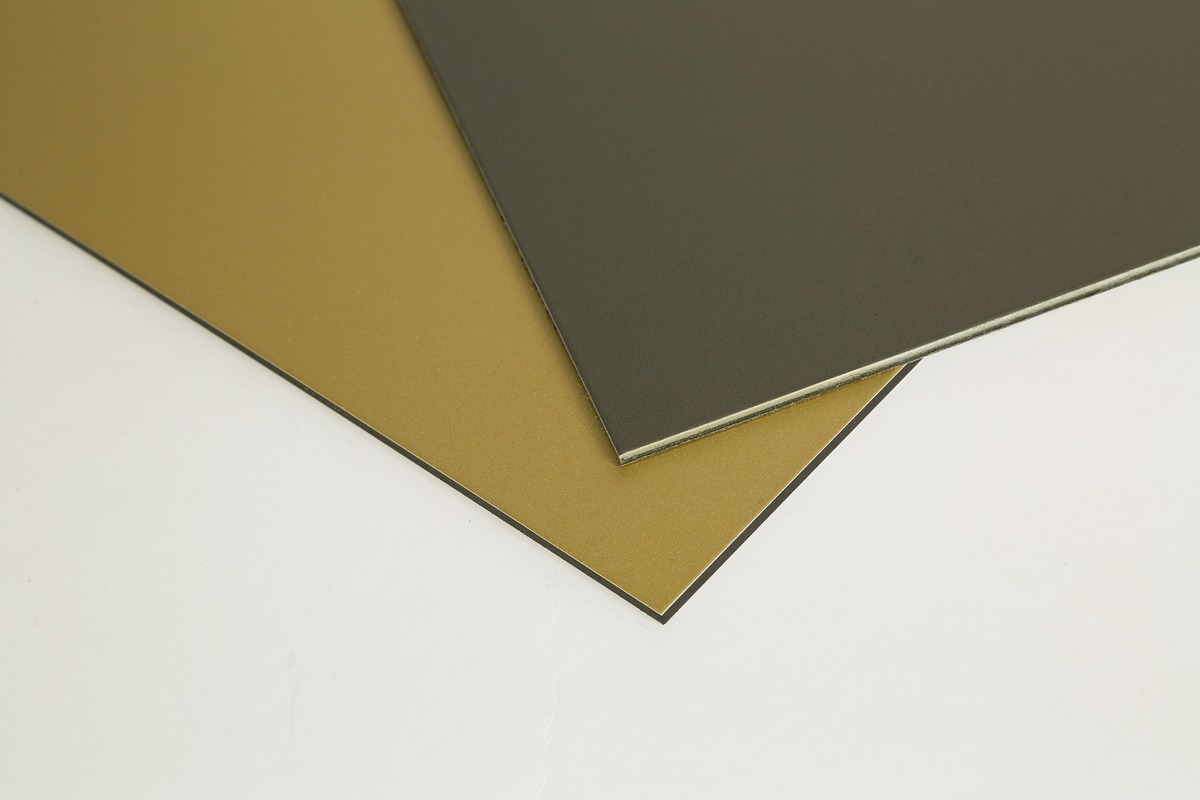

KYNAR500-based fluorocarbon coating, baked 2–3 times for a 25μm+ film. Acid and alkali resistant, 15–20 years without abnormal fading.
20-year warranty. The standard choice for exterior wall cladding.
Specifications →

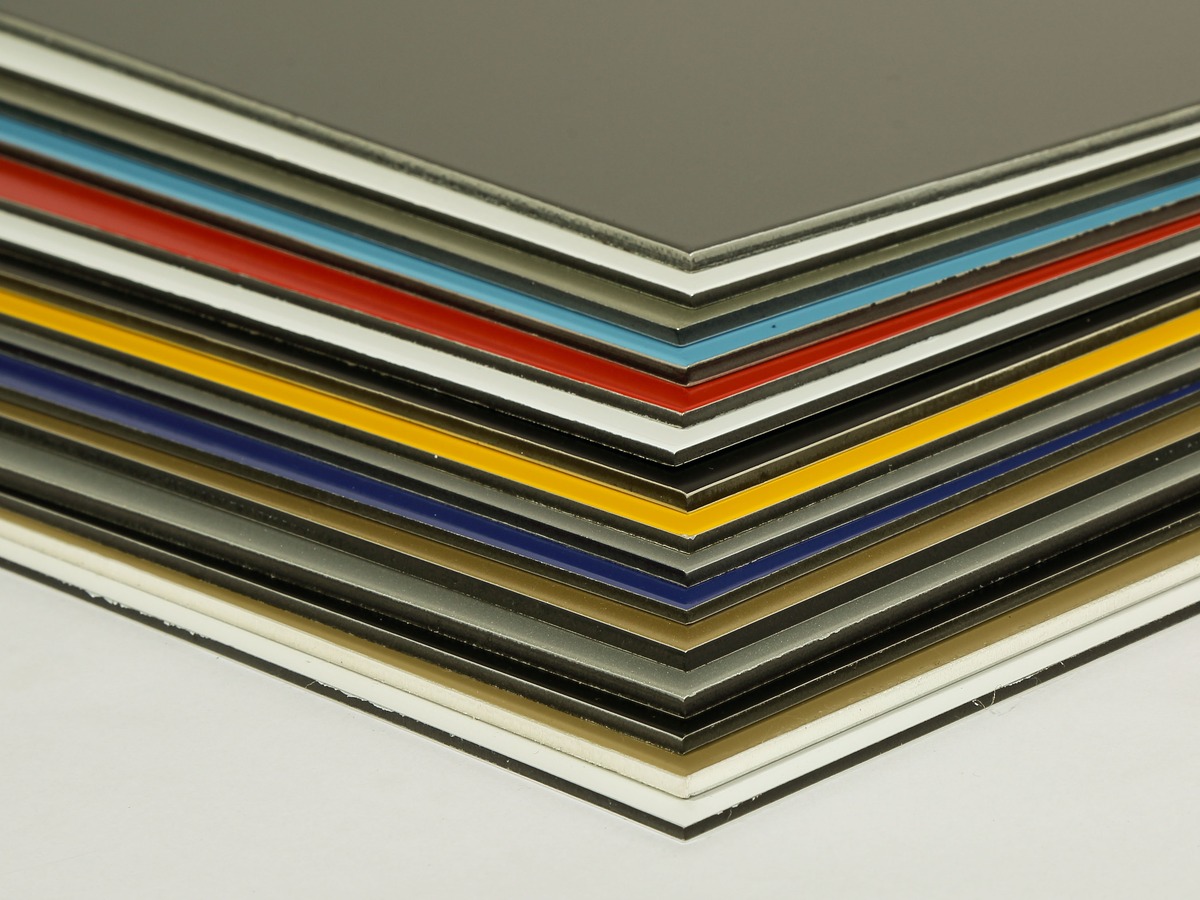

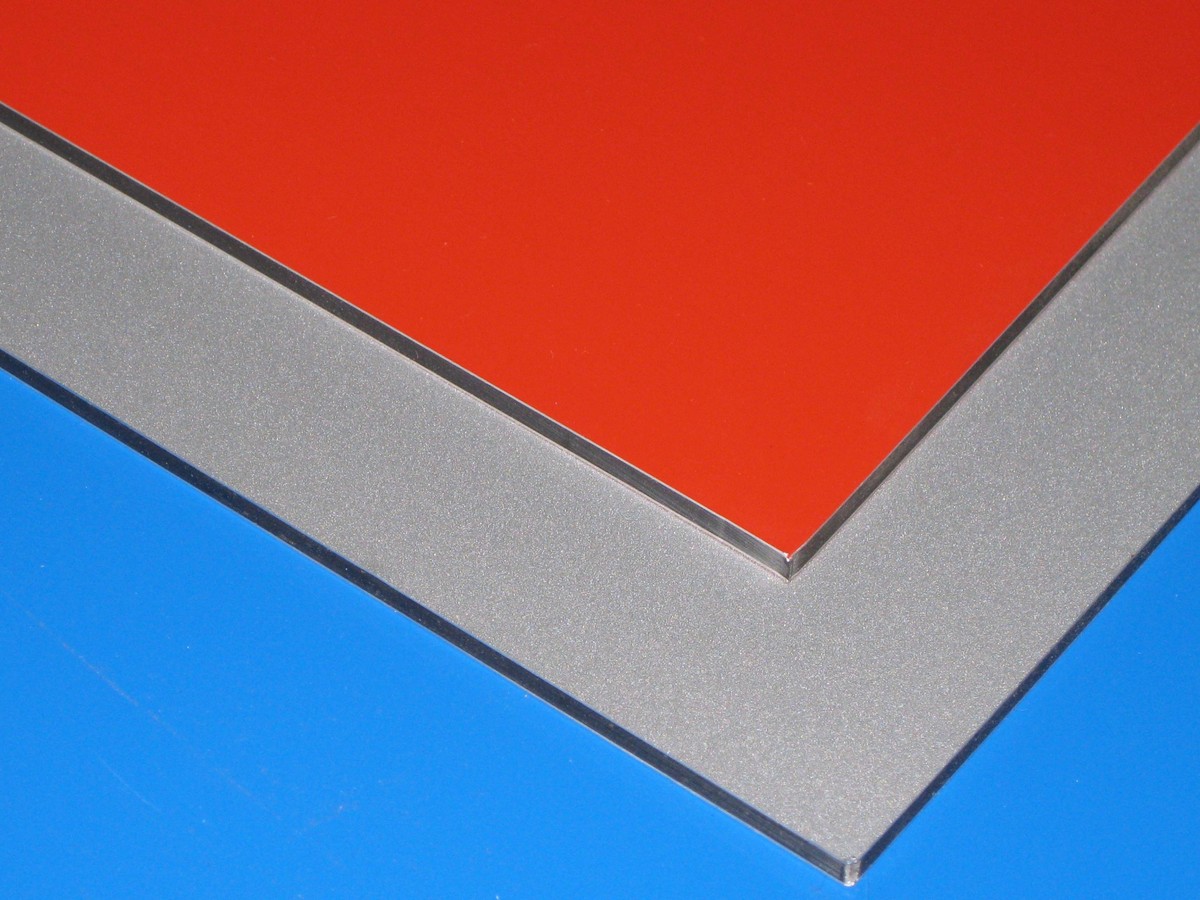

Nano-treated surface adds self-cleaning properties to PVDF durability — dirt washes away with rain.
Premium exterior choice for low-maintenance facades.

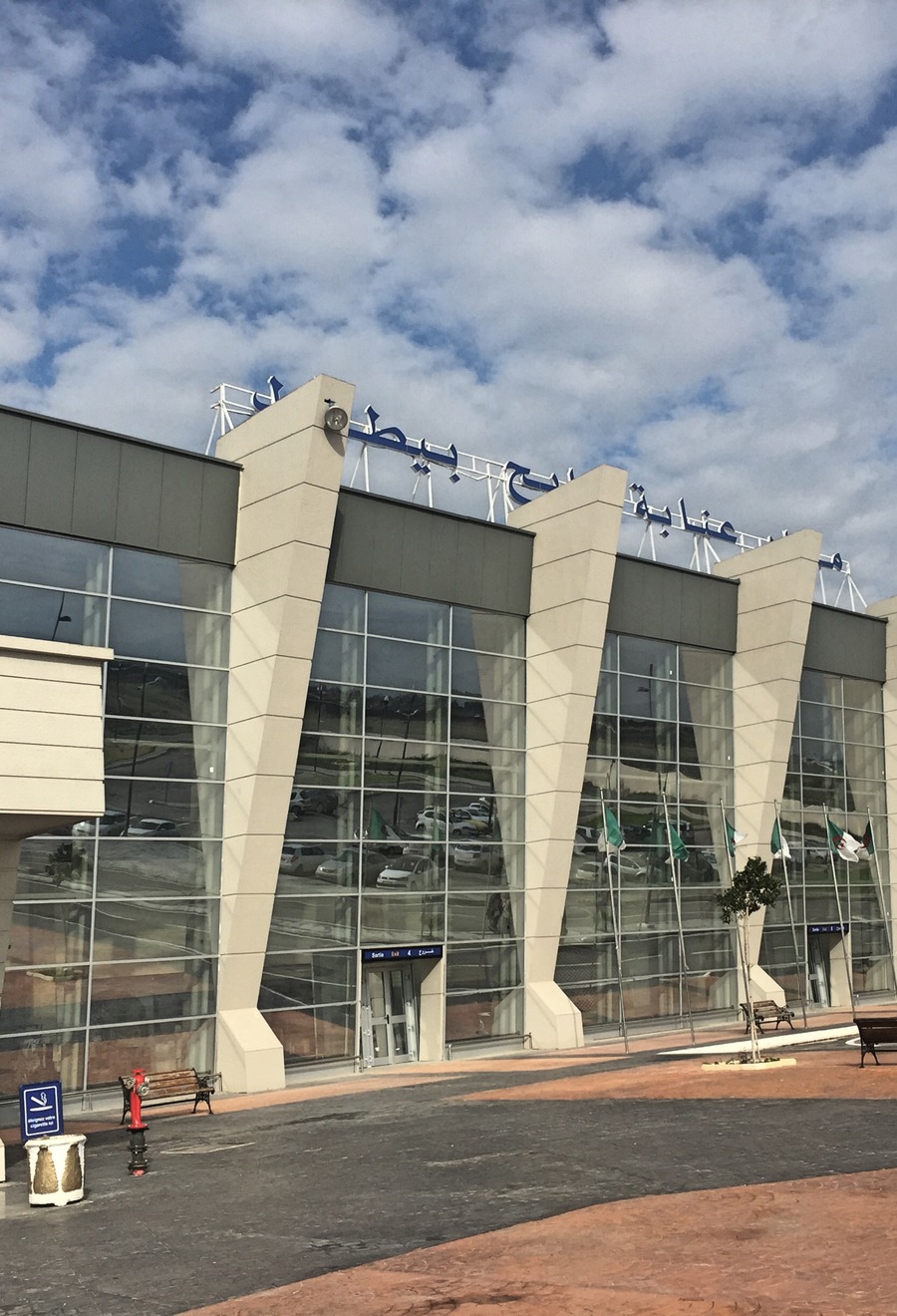

Polyester coated panels for interior and short-term exterior use. Cost-effective with good formability.
10-year warranty. Ideal for interior decoration and short-term outdoor signage.
Test sample: PVDF ACM 4 × 0.30mm — all 18 test items passed, key results below.
| Standard widths | 1220 / 1250 / 1500 / 1550 / 2000 mm |
|---|---|
| Standard lengths | 2440 / 3050 / 4880 mm |
| Total thickness | 2 – 6 mm |
| Aluminum skin thickness | from 0.30 mm (customizable) |
| Coating thickness | ≥ 25 μm (measured 27–30 μm) |
| 180° peel strength | ≥ 7.0 N/mm (measured 11.2 N/mm) |
| Bending strength | ≥ 100 MPa (measured 121 MPa) |
| Salt spray resistance | 3000 h, grade 1 |
| Artificial weathering | 4000 h, color difference ≤ 4.0 (measured 1.24) |
| MOQ | 500 m² per color |
| Colors | 36+ standard colors, unlimited custom matching |
| Packing | Strong wooden pallet or nude packing |
Mineral-core panels for strict building fire codes.

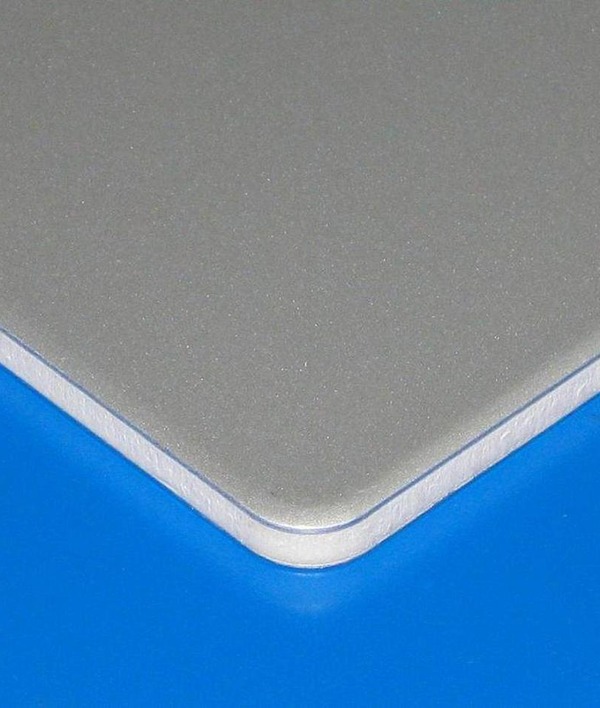

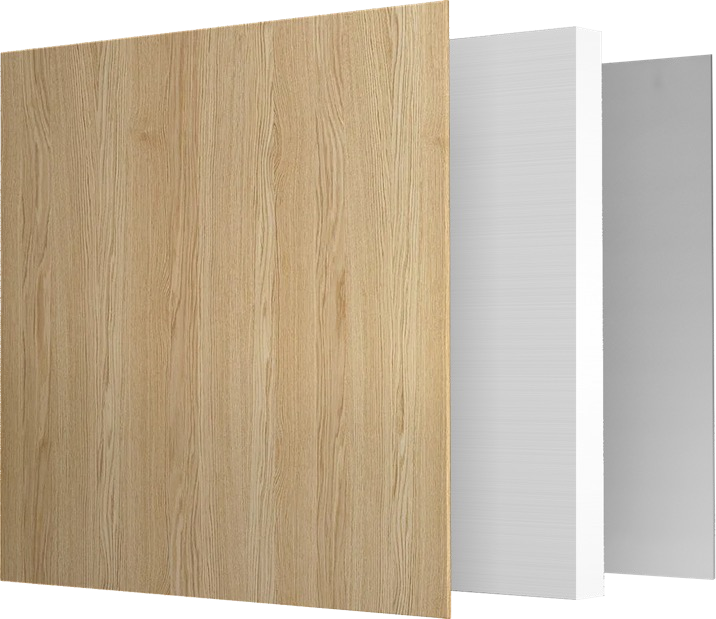

Class A2 fire-rated panel with high mineral content core for high-rise facades and public buildings with the strictest fire regulations.

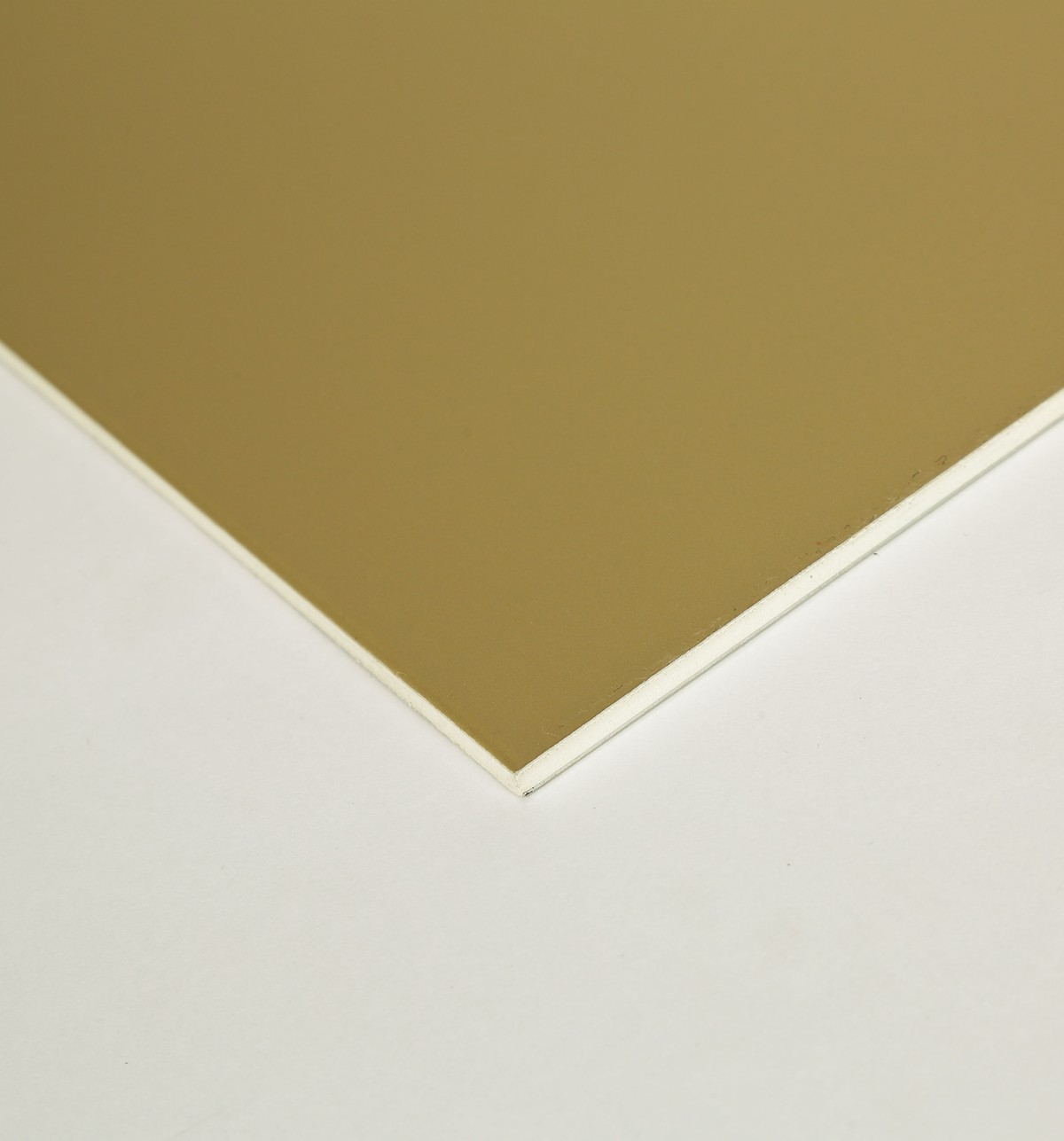

Class B1 fireproof panel balancing fire performance, flatness and cost — the workhorse for regulated cladding projects.
Wider, stronger, lighter — engineered for the next project.
2000mm ultra-wide panels mean fewer joints, faster installation and a cleaner facade — also ideal for large signage.
Aluminium lattice core delivers high rigidity at low weight — the strength of honeycomb construction with ACP economics.

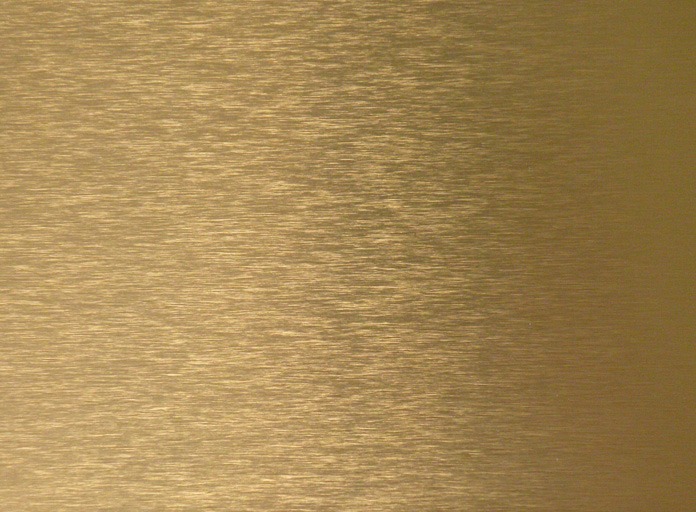

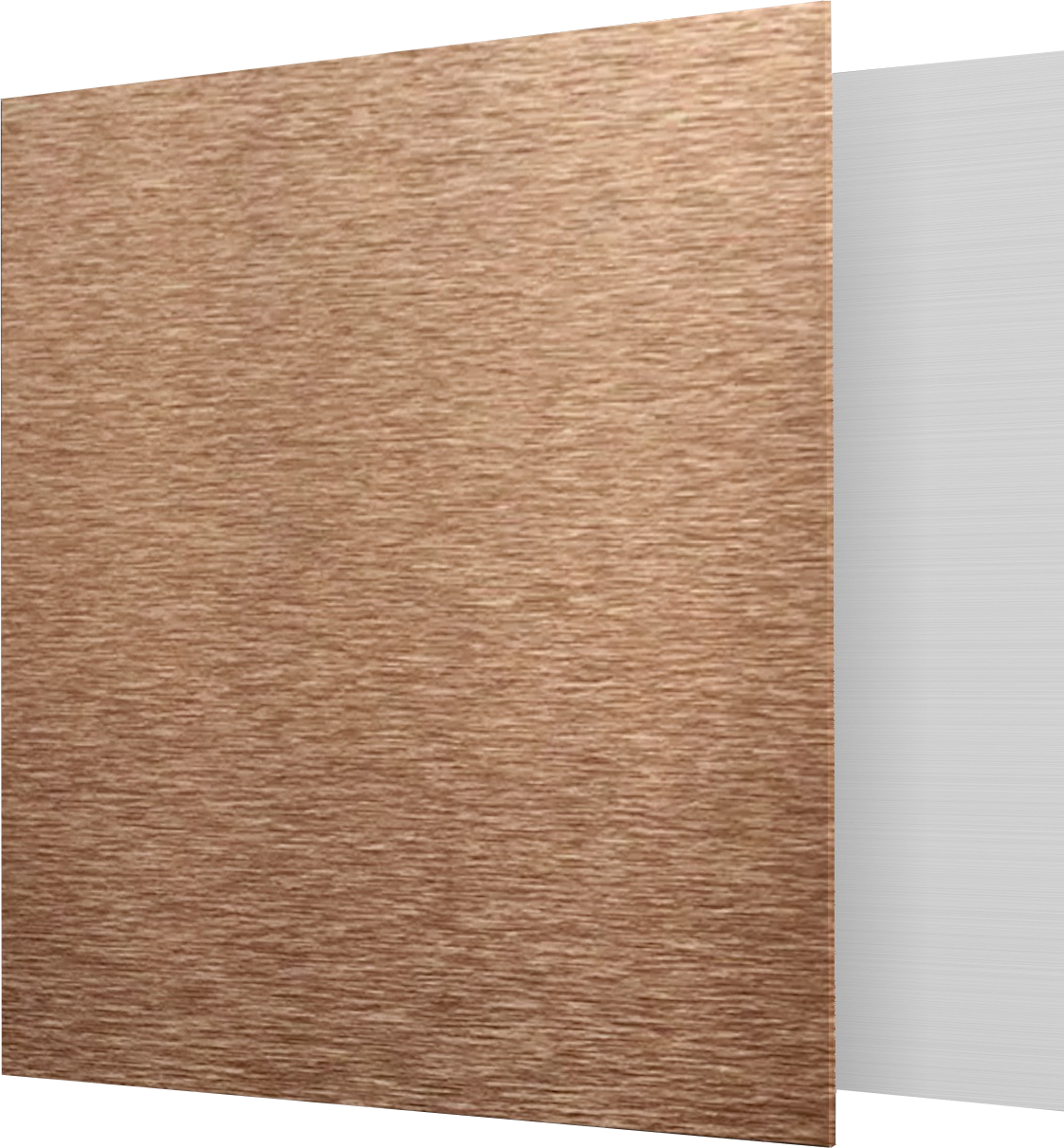

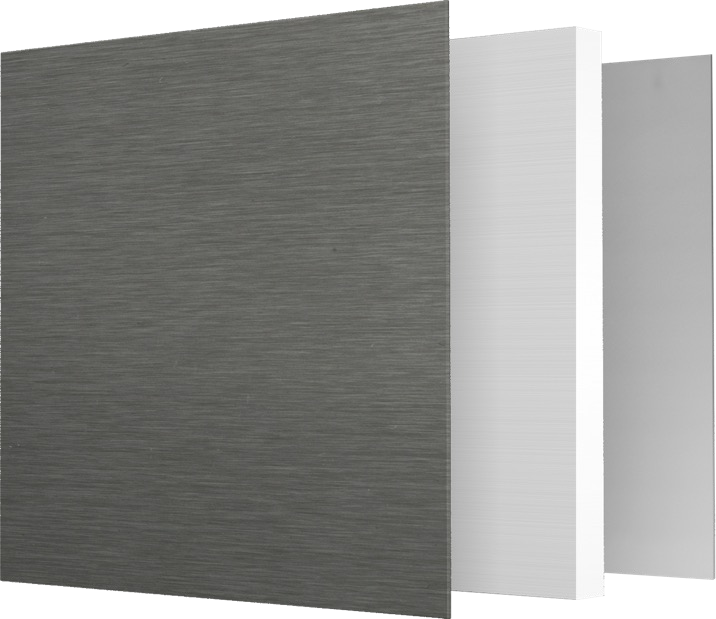

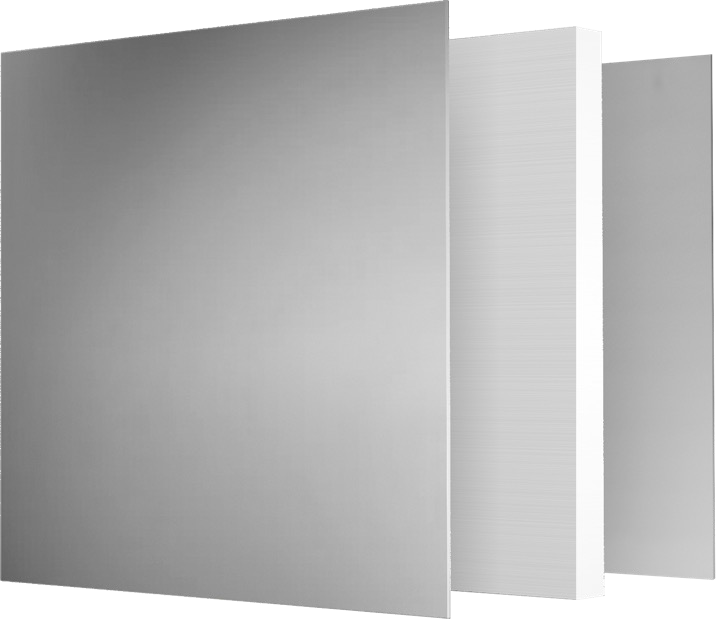

Stainless, copper and other metal skins laminated in-house for premium architectural expressions.
Decorative surfaces that make the project.
Brushed
Mirror
Wooden
Spectra
Nacreous

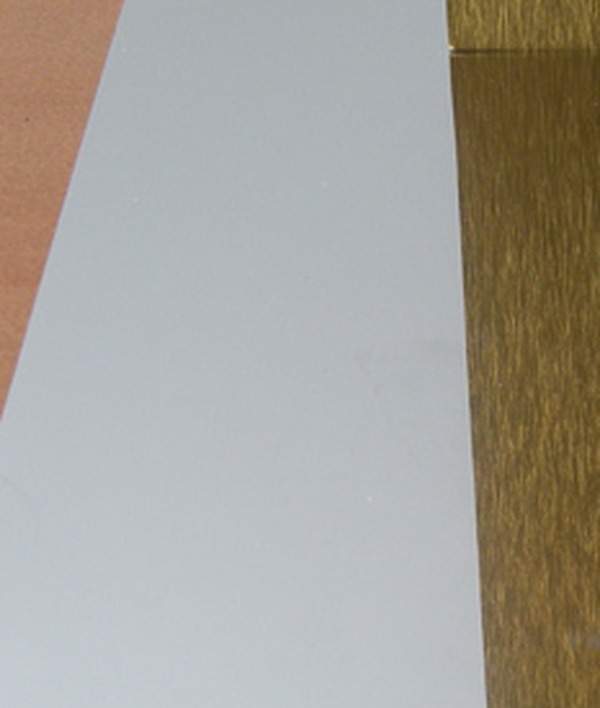

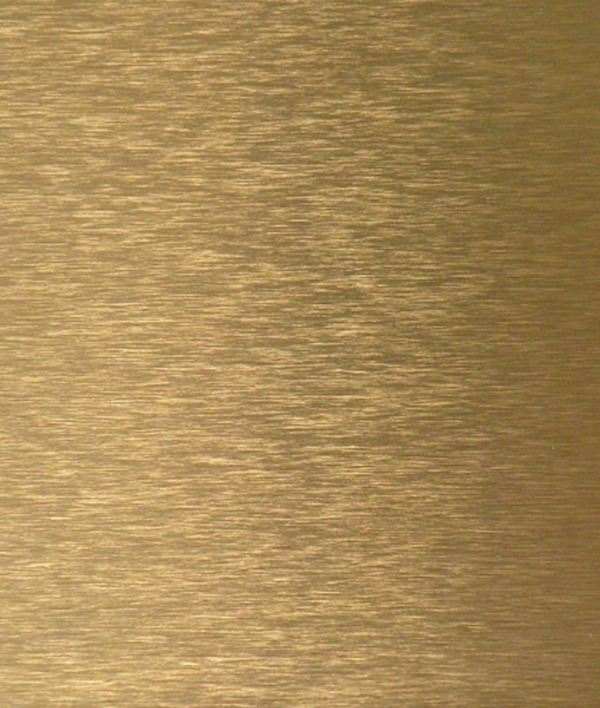

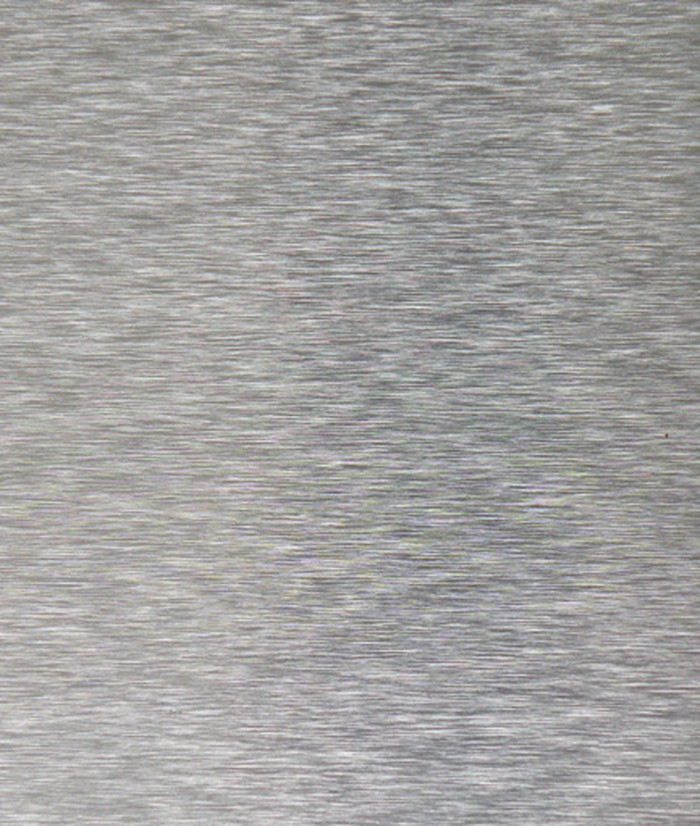

Fire-ratedDirectional brushed texture and high-gloss mirror surfaces for premium interiors, elevators and feature walls.

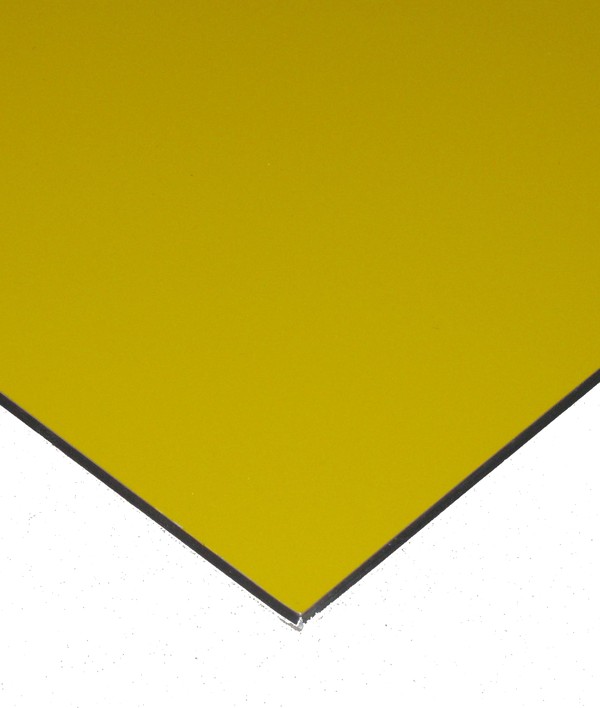

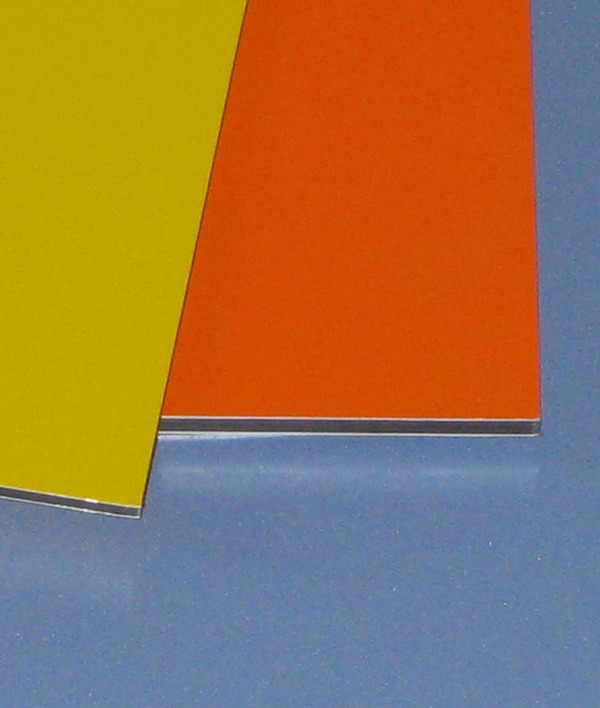

Color-shifting pearlescent coatings that change character with viewing angle and light.

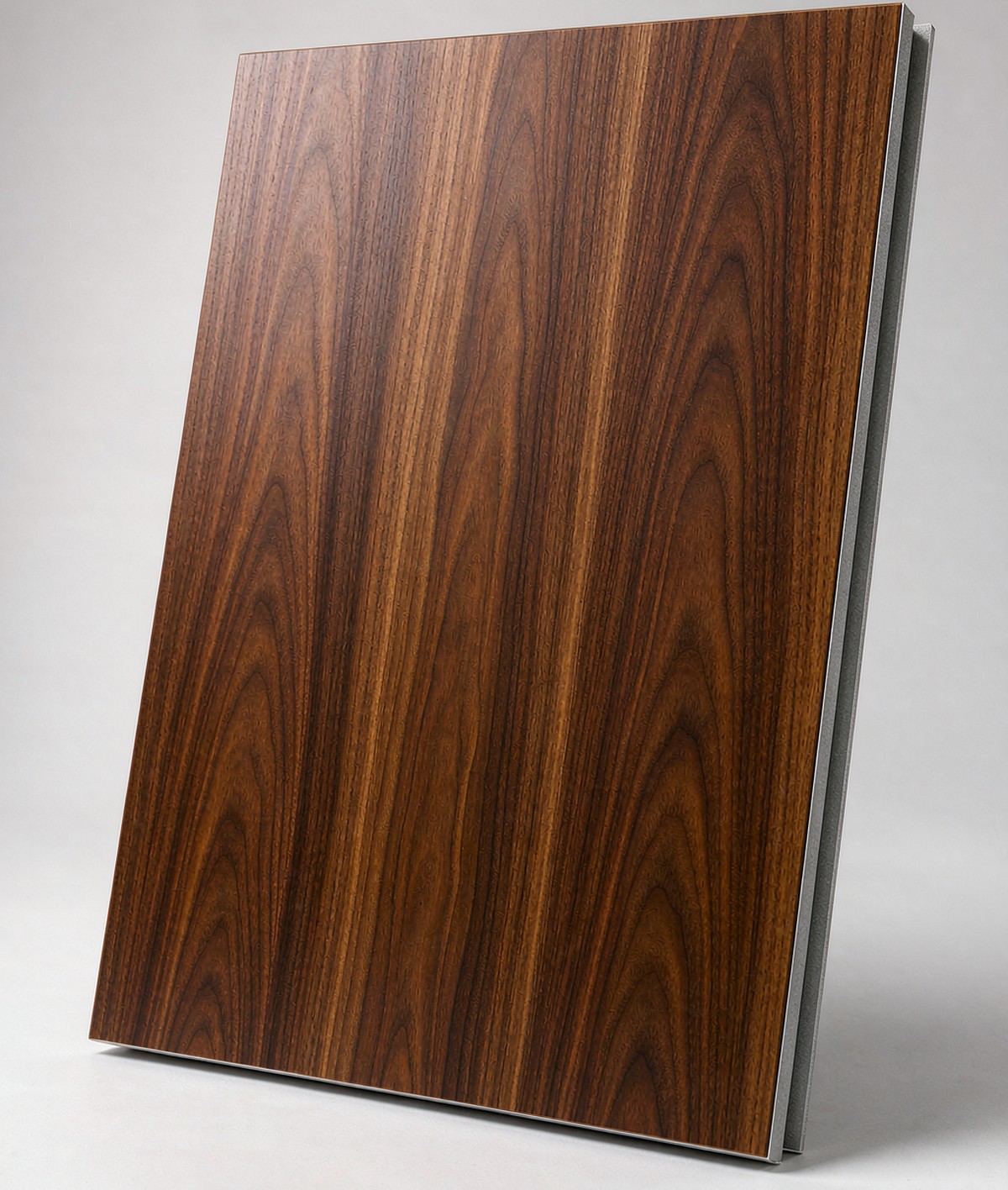

Realistic wood grains with ACP durability — for decoration, furniture and warm architectural accents.
Stocked colors ship in 7 days. Custom color matching from any physical sample or Pantone code — typically 15 days from approval.

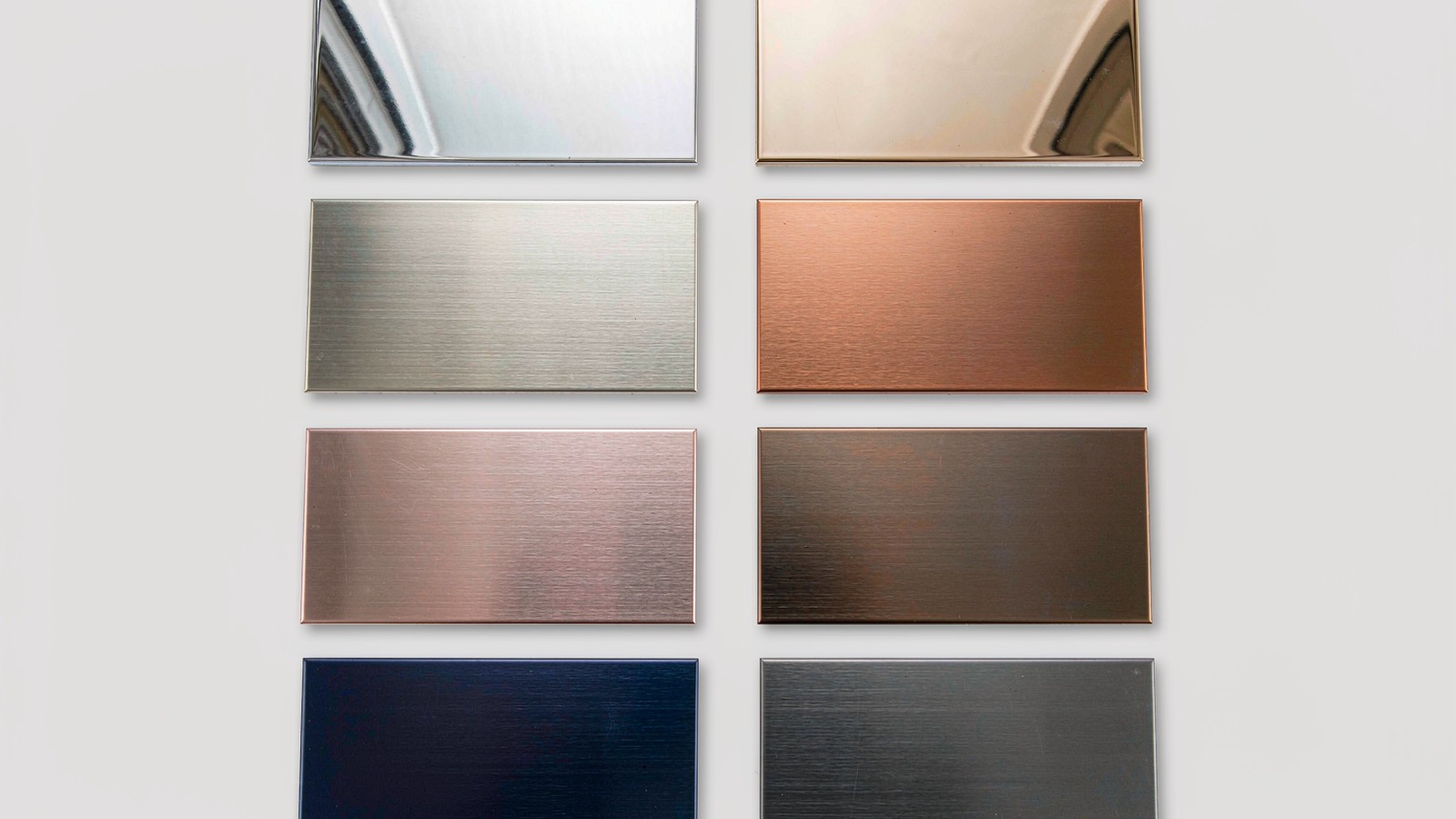

Eight core metallic finishes stocked in 1220 × 2440 mm, available in 3 / 4 / 5 / 6 mm thickness. All compatible with the full Fire-rated ACP product line.

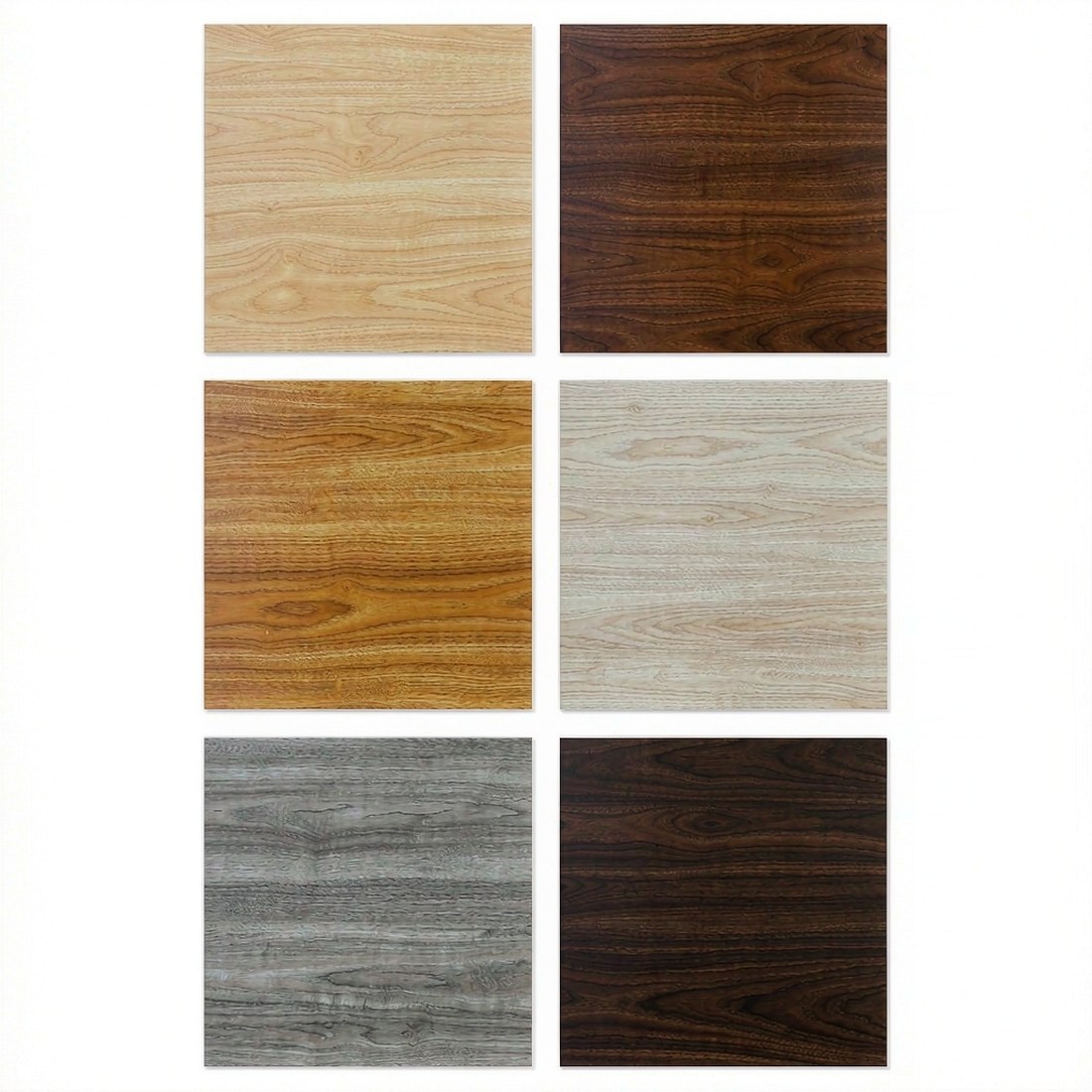

Six natural wood tones printed via high-resolution roller transfer — the warmth of wood with the durability of ACP. Realistic grain, fade-resistant color.

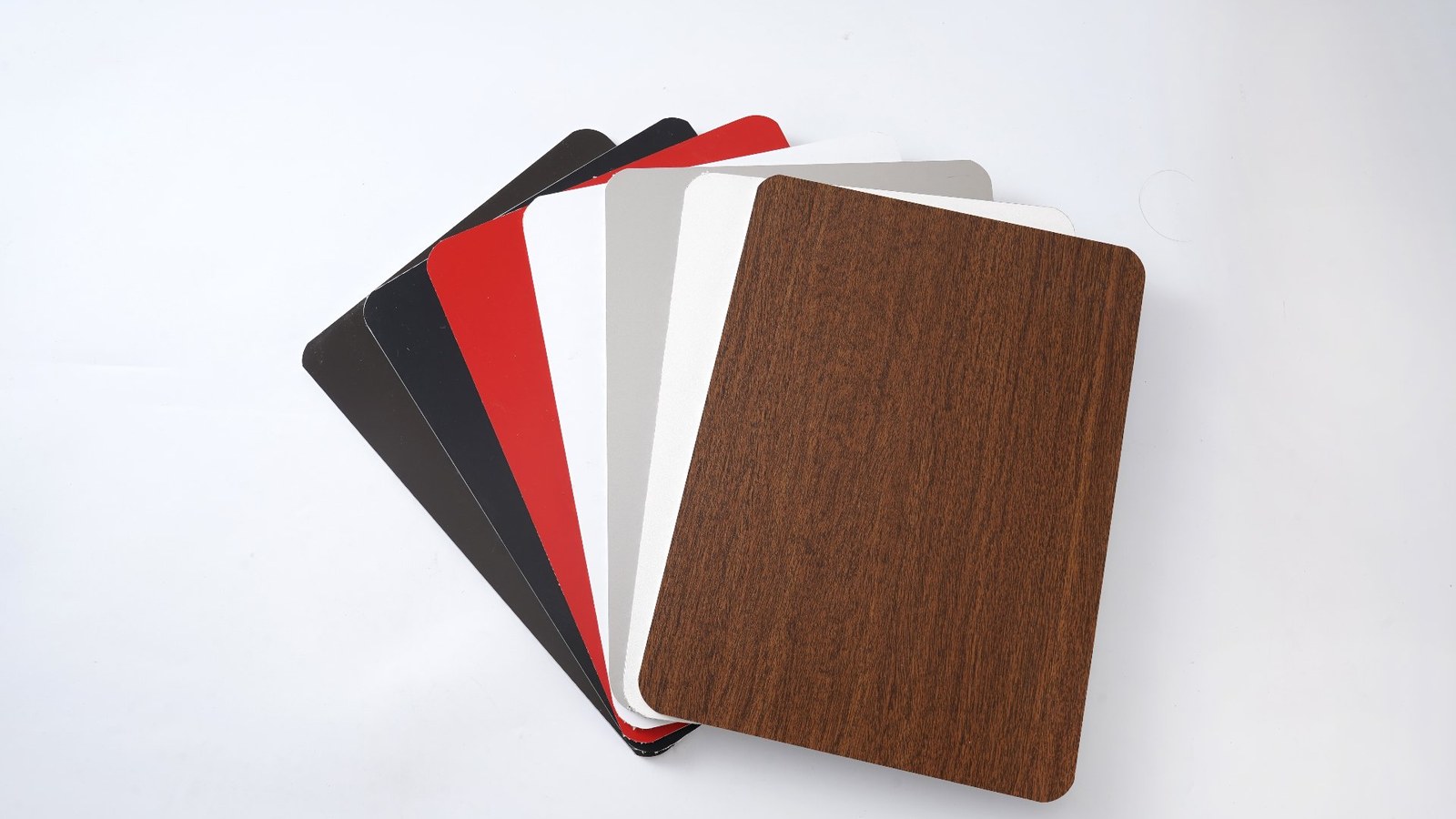

Beyond stocked series, our color library covers glossy and matte solids, brushed metals and pearlescent effects — and any custom color matched from a physical sample or Pantone code.
Print-ready panels for the signage and digital printing industry.

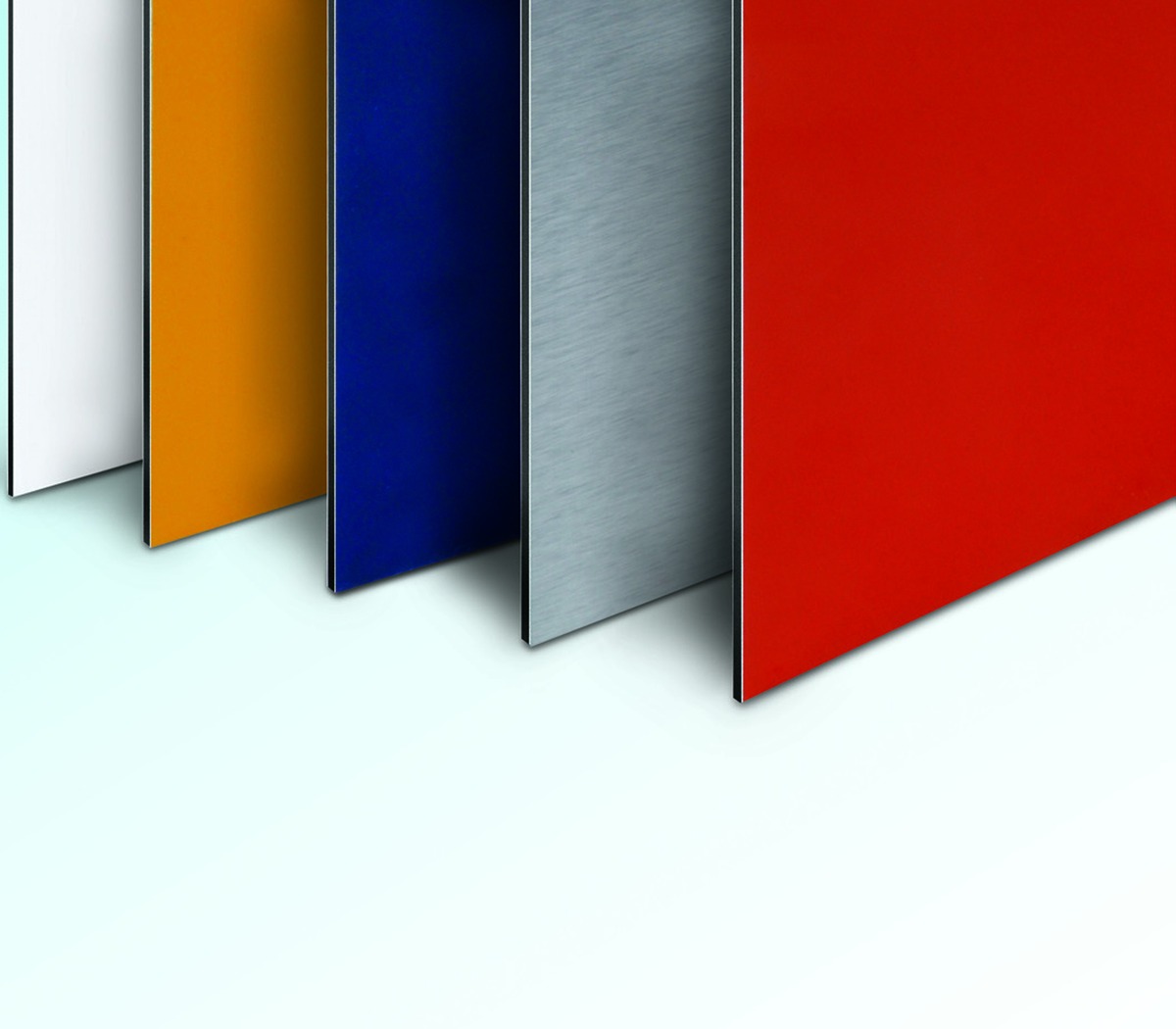

Optimized matte surface for UV printing with excellent ink adhesion and anti-glare finish.

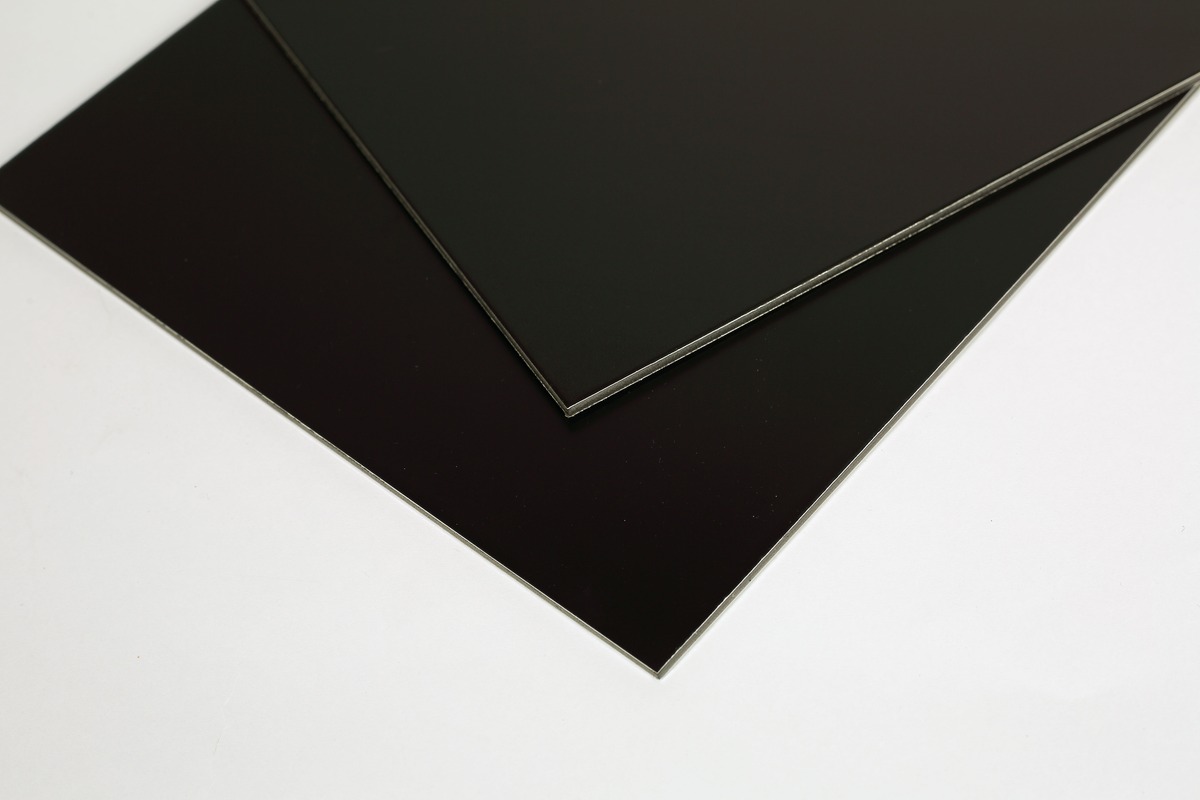

High-gloss surface engineered for digital printing — vivid color reproduction and a smooth finish.
FEVE resin coating combines gloss retention with formability — a step up for demanding sign applications.
An ACP panel combines aluminum face sheets with a bonded core. Compare the complete specification for your application, rather than selecting by total thickness alone.
For cladding, confirm the project requirements for the core, coating, aluminum skin thickness and installation system. For signage, confirm the surface finish and the intended printing or fabrication process.
Read our panel thickness and aluminum skin guide before requesting a quote. You can also learn about our ACP manufacturing process and contact our team with your specification.
Send your application, panel dimensions, total thickness, aluminum skin thickness, finish, quantity and delivery destination.
